65 13 050 Removing and installing/replacing speaker (tweeter, triangular mirror section, left or right)

Carefully unclip cover for mirror triangle (1) in area (2).

Remove mirror triangle cover (1) in direction of arrow.

Disconnect plug connection behind.

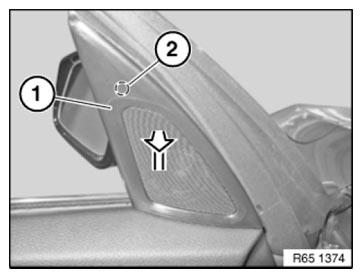

Fig 1: Removing Mirror Triangle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and retaining lug (2) must not be damaged.

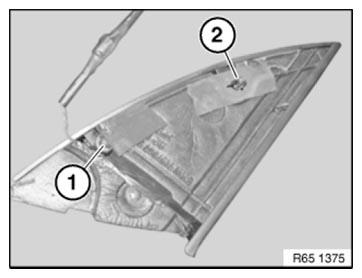

Fig 2: Identifying Guide And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip tweeter (1) at retaining lugs (2) and remove from mirror triangle cover (3).

Installation:

Retaining lugs (2) must not be damaged.

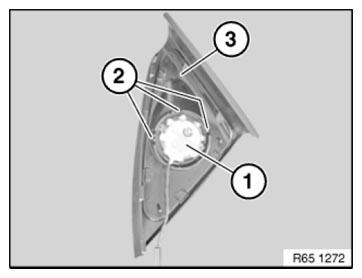

Fig 3: Identifying Tweeter, Retaining Lugs And Mirror Triangle Cover

Courtesy of BMW OF NORTH AMERICA, INC.
