65 12 265 Removing and installing/replacing DVD player in rear console

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and notes on HANDLING OPTICAL FIBRES .

Necessary preliminary work

Unlock plug connections (1) and disconnect.

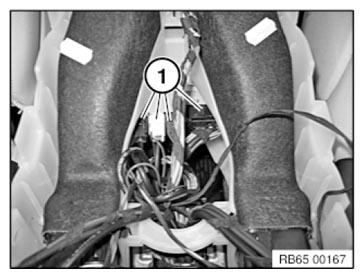

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock associated plug connections and disconnect.

Remove DVD player (2).

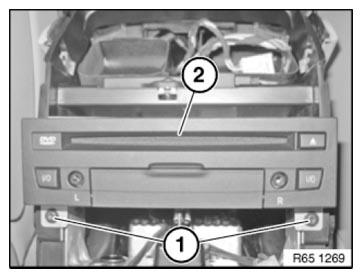

Fig 2: Identifying DVD Player And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
