65 24 020 Removing and installing/replacing blocking circuit

Necessary preliminary tasks

• Lower rear roofliner. See 51 44 013 REMOVING AND INSTALLING/REPLACING HEADLINING (VERSION WITH PANORAMA GLASS ROOF) or 51 44 002 REMOVING AND REFITTING (REPLACING) HEADLINER (VERSION WITHOUT PANORAMIC SUNROOF) .

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3).

Installation:

Ensure suppressor circuit (3) is seated correctly.

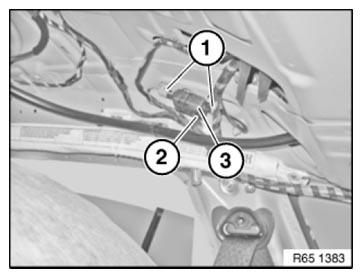

Fig 1: Identifying Plug Connections, Blocking Circuit And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
