65 81 060 Remove and installing/replacing outside temperature sensor (N54, N55, N63, N74, N57S)

• Remove front right wheel arch cover (front section). See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .

Unclip outside temperature sensor (1) in direction of arrow from mounting and pull out.

Disconnect plug connection (2) and remove outside temperature sensor (1).

Installation:

Clip temperature sensor (1) into place.

Close plug connection (2).

Make sure outside temperature sensor (1) is correctly engaged in mounting.

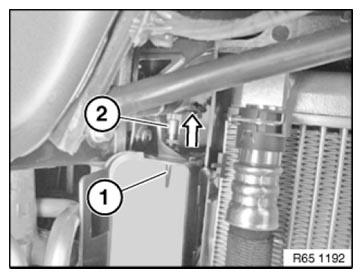

Fig 1: Removing Outside Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
