65 20 165 Removing and installing/replacing left TV aerial

Necessary preliminary tasks

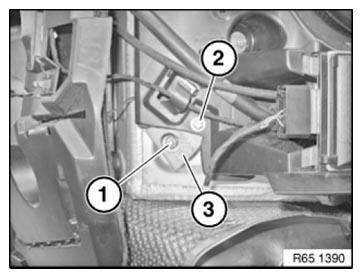

Release nut (1) and screw (2).

Remove retaining bracket (3) and TV aerial underneath.

Fig 1: Identifying Retaining Bracket, Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

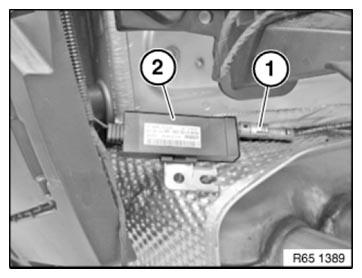

Unlock plug connection (1) on TV aerial (2) and disconnect.

Fig 2: Identifying Plug Connection And TV Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

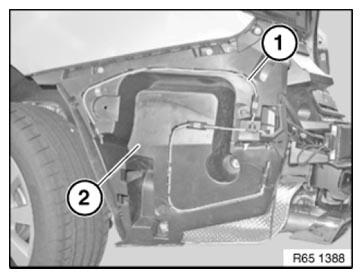

Remove TV aerial (1) from bumper guide (2).

Release screw (3).

Remove TV aerial (1).

Installation:

Make sure TV aerial (1) is correctly laid.

Fig 3: Identifying TV Aerial And Bumper Guide

Courtesy of BMW OF NORTH AMERICA, INC.
