65 11 075 Removing and installing/replacing DVD changer

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks

Open glove box.

Release screws (1).

Remove bracket for DVD changer (2) downward.

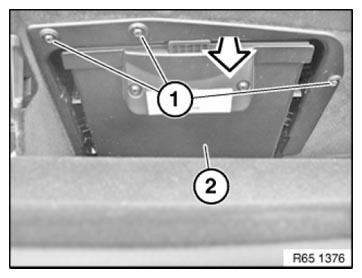

Fig 1: Removing Bracket For DVD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure bracket of DVD changer (1) is correctly seated in glove compartment (3).

Guide lugs (1) must fit correctly in the corresponding recesses.

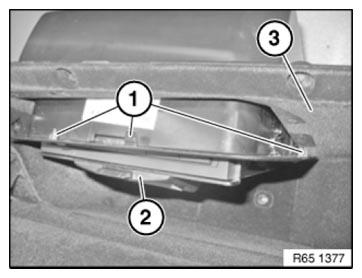

Fig 2: Identifying DVD Changer, Glove Compartment And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove bracket (2) with DVD changer.

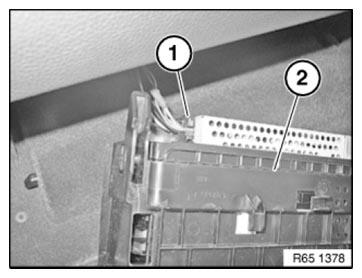

Fig 3: Identifying Plug Connection And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Open fold-down compartment (1).

Release left and right screws (2).

Pull DVD changer (4) in direction of arrow out of bracket (3).

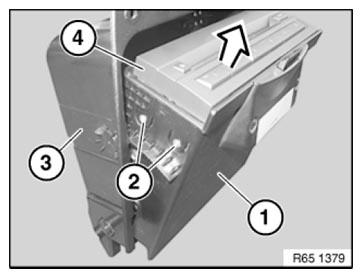

Fig 4: Pulling Out DVD Changer From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
