65 50 160 Removing and installing/replacing cover for rear passenger compartment monitor at front
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
Necessary preliminary work
IMPORTANT:
Do not damage or scratch display.

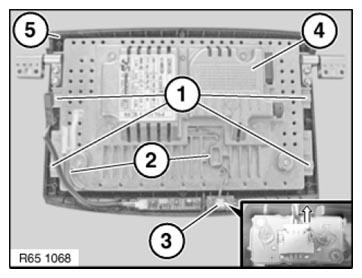

Release screws (1).
Tightening torque 65 50 1AZ .
Carefully disconnect plug connection (3).
Remove rear passenger compartment monitor (4) from cover (5).
Installation note:
Ensure correct cable routing in guides (2).
Make sure cover (5) is correctly seated on rear passenger compartment monitor (4).
