65 75 055 Removing and installing/replacing emergency power siren with tilt sensor

Necessary preliminary work

Secure guide for bumper (3) against falling out.

Unfasten plug connection (1) and disconnect.

Slacken nut (1).

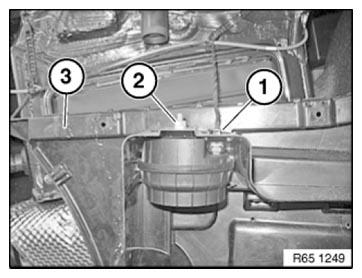

Fig 1: Identifying Plug Connection, Bumper And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1).

Remove emergency power siren (2) from guide for bumper (3).

Catch (1) must not be damaged.

Make sure emergency power siren (2) is correctly seated on guide for bumper (3).

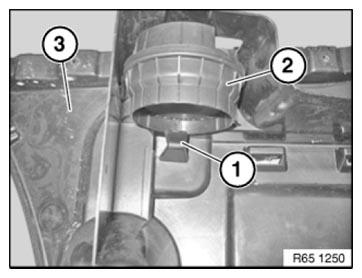

Fig 2: Identifying Emergency Power Siren, Bumper And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
