65 77 735 Removing and installing/replacing central sensor

WARNING: Note AIRBAG SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag deployment and cause injury.

Necessary preliminary tasks

Unscrew nuts (1).

Remove holder (2) from center console wiring harness (3).

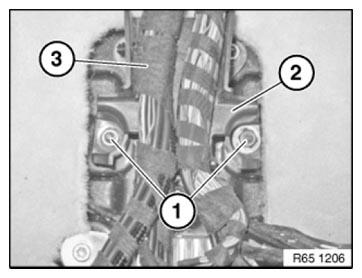

Fig 1: Identifying Centre Console Wiring Harness, Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 65 77 5AZ .

Remove sensor (2).

Unlock plug connection (3) and disconnect.

Installation:

Make sure sensor is mounted without play.

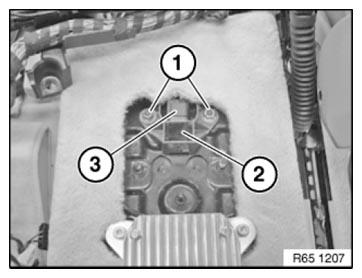

Fig 2: Identifying Plug Connection, Sensor And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
