65 77 720 Removing and installing (replacing) left B-pillar sensor
WARNING:
NOTE AIRBAG SAFETY REGULATIONS!
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary work
- Disconnect NEGATIVE BATTERY CABLE .
- Remove trim panel for door post. See 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .

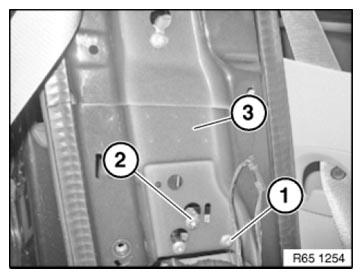

Release screw (1) on B-pillar (3).
Loosen screw (2).
Installation note:
Tightening torque 65 77 3AZ .
Make sure sensor is mounted without play.
Feed out B-pillar sensor in downward direction.

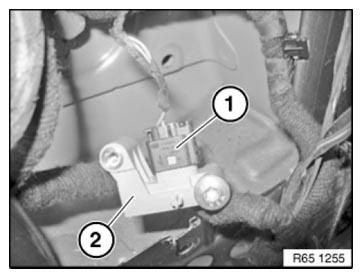

Unlock plug connection (1) and disconnect.
Remove B-pillar sensor (2).
