65 77 016 Removing and installing/replacing airbag control unit

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS!
Incorrect handling can activate airbag and cause injury.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work

Release screw (1).

Tightening torque 65 77 1AZ .

Press airbag control unit (2) out of rubber mounts (3).

Unlock plug connections (4) and disconnect.

Remove airbag control unit (2).

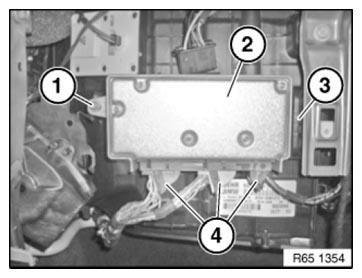

Fig 1: Identifying Airbag Control Unit, Rubber Mounts, Plug Connections And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure guides (1) are correctly seated in rubber mount (2).

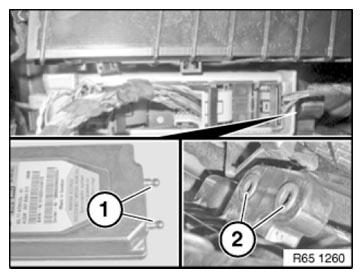

Fig 2: Identifying Guides And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
