65 20 150 Removing and installing/replacing back-up aerial

Necessary preliminary tasks

• Remove right luggage compartment wheel arch panel. See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove backup aerial (3).

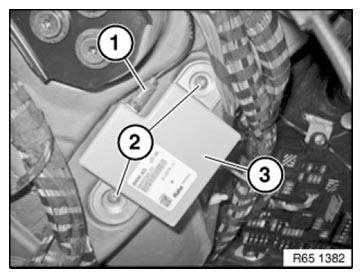

Fig 1: Identifying Plug Connection, Backup Aerial And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
