65 20 090 Removing and installing/renewing aerial amplifier (aerial diversity)
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
Necessary preliminary work
Remove trim for rear lid at top. See 51 49 020 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LID, TOP .
Unlock and disconnect all plug connections.

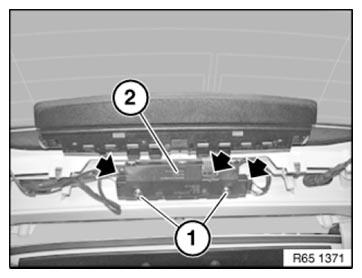

Release screws (1).
Tightening torque 65 20 1AZ .
Remove aerial amplifier (2).
