84 31 020 Removing and installing/replacing hands-free system speaker
Necessary preliminary work
- Remove trim panel for pedal mechanism. See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

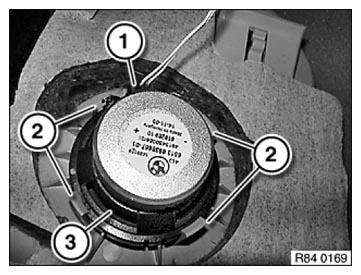

Disconnect plug connection (1).
If necessary, release cable straps from latch mechanisms (2).
Unlock latch mechanisms (2) and remove speaker (3) from bracket.
Installation note:
Latch mechanisms (2) must not be damaged.
Guide lugs of bracket must be seated in grooves of speaker (3).
Speaker (3) must snap audibly into place in bracket.
