Necessary preliminary work

• Remove REAR BUMPER PANEL .

Unlock plug connection (1) and disconnect.

Unlock catch (2).

Remove sensor (3) from bracket in direction of arrow.

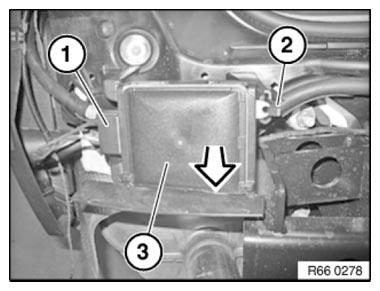

Fig 1: Identifying Sensor, Plug Connection And Catch

Courtesy of BMW OF NORTH AMERICA, INC.
