61 31 338 Removing and installing/replacing grip cover for gear selector switch (ceramic application, operating elements)

Special tools required:

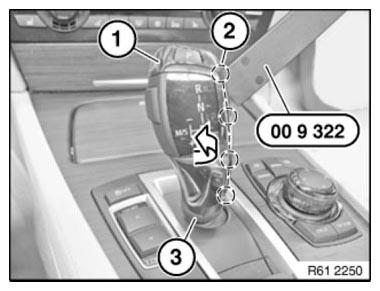

Carefully unclip knob cover (1) 00 9 322 with special tool at points (2) from gear selector switch (3) and remove in direction of arrow.

Fig 1: Removing Knob Cover From Gear Selector Switch Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

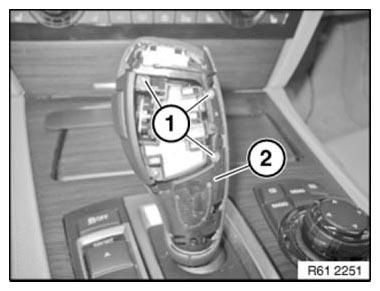

Release screws (1) and remove support (2).

Tightening torque 61 31 4AZ .

Fig 2: Identifying Gear Selector Switch Support And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

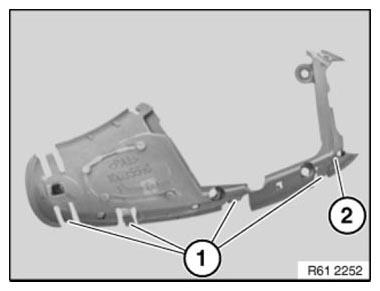

IMPORTANT: Removed ceramic carrier (2) must not be reused.

Installation note:

Engagement lugs (1) of ceramic carrier (2) must not be damaged.

Fig 3: Identifying Lugs And Ceramic Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
