61 31 334 Removing and installing or replacing grip cover for gear selector switch

Special tools required:

Carefully unclip cover (1) using special tool 00 9 322 on points (2) from gear selector switch (3) and remove in the direction of arrow.

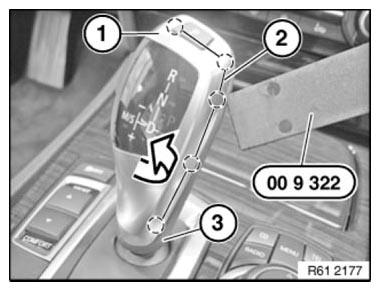

Fig 1: Removing Cover From Gear Selector Switch Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) must not be damaged or missing.

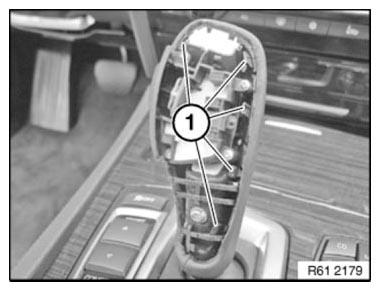

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) and guide (2) must not be damaged or missing.

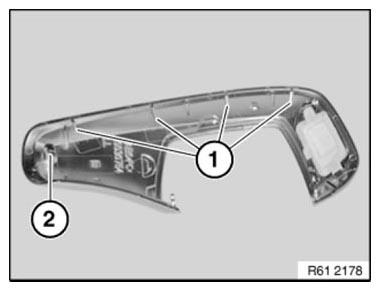

Fig 3: Identifying Latch Mechanism And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
