61 31 233 Removing and installing/renewing Lane Departure Warning engine electrical system (TLC actuator)

Necessary preliminary tasks

• Remove airbag unit  . See 32 34 030 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (SPORT STEERING WHEEL) or 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT .

Remove lower steering wheel trim

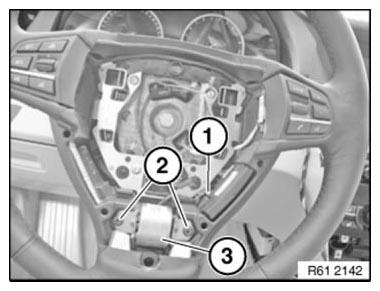

Disconnect plug connection (1).

Release screws (2) and remove engine electrics (3).

Tightening torque 32 33 2AZ .

Installation note:

Replace screws (2).

Ensure correct cable routing.

Replacement from build date 03/2009:

Engine electrical system must be readjusted.

The service module "Adjustment actuator Lane Departure Warning" can be found at:

• Body
• Camera-based driver support systems
• Adjustment actuator Lane Departure Warning
