32 41 285 Replacing level switch for Dynamic Drive fluid reservoir

Necessary preliminary tasks

Release screws (1) and (2).

Remove washers.

Tightening torque 32 41 1AZ/2AZ .

Remove fluid reservoir by pulling upwards.

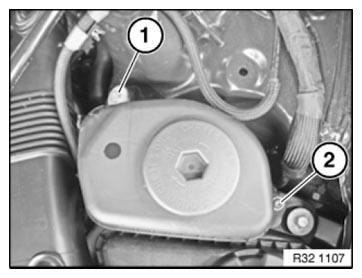

Fig 1: Identifying Fluid Reservoir Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

Fig 2: Removing Level Switch From Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.
