67 31 610 Removing and installing/replacing drive for seat tilt adjustment (comfort seats in rear compartment)
Necessary preliminary tasks
- Remove complete padding for rear seat
Installation:
- Powerlok screws must be replaced and must not be reused
- Powerlok screws are mechanical screw locks with trilobular threads
Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

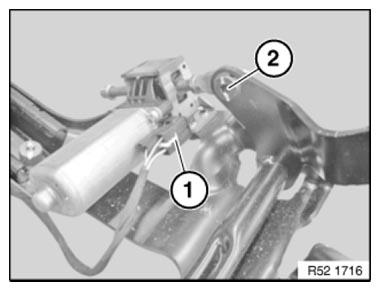

Unfasten plug connection (1) and disconnect.
Release screw (2).
Installation:
Replace screw (2).
Tightening torque 67 31 13AZ .

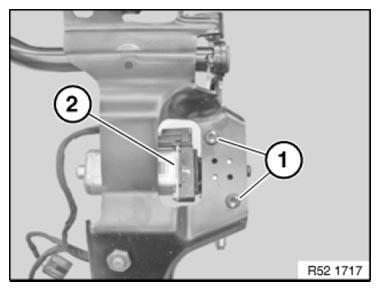

Release screws (1).
Installation:
Replace screws (1).
Tightening torque 67 31 12AZ .
Remove drive for seat tilt adjustment (2).
Installation:
Installation position for controlled pan installation.

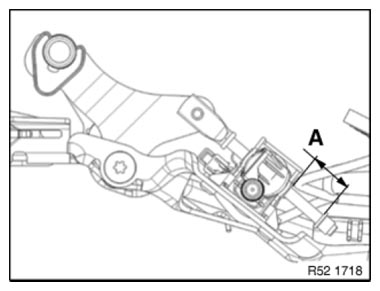

Adjust position (A) of seat tilt adjustment from rear stop.
A. = 29.4 mm
NOTE:
- Carry out FUNCTION CHECK WITH ADAPTER CABLE .
Replacement only:
INITIALIZE drive unit for seat tilt adjustment.
