67 31 600 Removing and installing/replacing forward/back seat adjustment drive unit (comfort seats in rear passenger compartment)

Necessary preliminary work

Unclip flex shaft cover (1) towards top.

Fig 1: Removing Flex Shaft Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull long sleeve tube (1) with flex shaft out of gearbox.

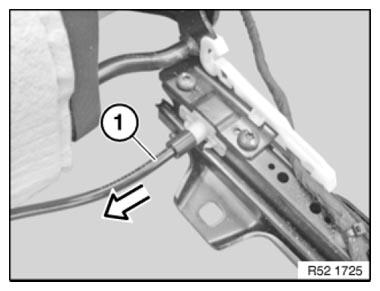

Fig 2: Pulling Long Sleeve Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Release screws (1).

Tightening torque 67 31 10AZ .

Remove forward/back seat adjustment drive unit.

Detach flex shafts from drive.

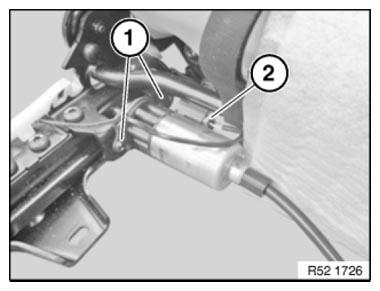

Fig 3: Identifying Drive Unit Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note

Make sure flex shafts are correctly seated.

Make sure rubber decoupler is correctly seated on drive.

NOTE:

Replacement only:

INITIALIZE forward/back seat adjustment drive unit.
