67 31 540 Removing and installing/replacing drive for backrest head adjustment

Necessary preliminary tasks

Disconnect plug connection (1).

Release screw (2).

Tightening torque 67 31 4AZ .

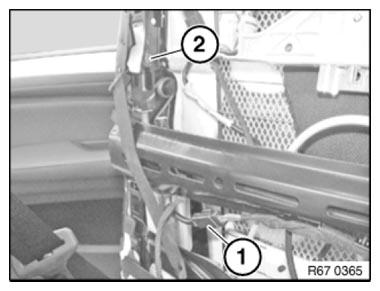

Fig 1: Identifying Front Seat Backrest Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull shaft (1) in direction of arrow out of shaft receptacle (2).

Installation:

Make sure shaft (1) is correctly seated in receptacle (2).

Release retaining ring (3).

Feed out drive unit for backrest head adjustment (4) and remove.

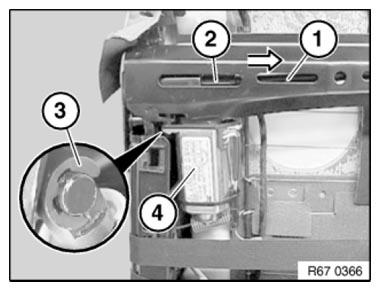

Fig 2: Pulling Shaft From Shaft Receptacle

Courtesy of BMW OF NORTH AMERICA, INC.

Removal and installation only

Do not turn spindle (1) in order not to change measurement A.

Replacement

Adopt measurement A of removed drive unit for backrest head adjustment (2). If necessary, adjust measurement A by turning spindle (1).

INITIALIZE drive unit for backrest head adjustment.

Fig 3: Turning Spindle To Adjust Measurement A

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:
