Removing forward/back seat adjustment motor

Unfasten plug connection (1) and disconnect.

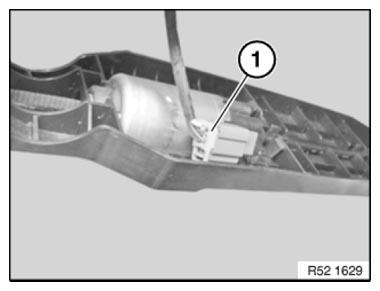

Fig 1: Identifying Forward/Back Seat Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining tabs.

Lift drive (1) with flex shaft out of guide in direction of arrow.

Pull flex shaft on left and right out of gearbox.

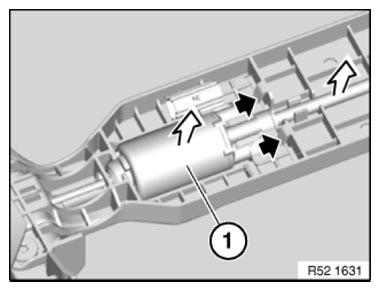

Fig 2: Lifting Drive Using Flex Shaft Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
