67 65 019 Removing and installing/replacing drive for left or right roller sunblind

Necessary preliminary work

• Remove sound insulation in rear door. See 51 48 070 REMOVING AND INSTALLING/REPLACING SOUND INSULATION ON LEFT OR RIGHT REAR DOOR .

Lift out sleeve (1).

Release screws.

Unlock associated plug connection and disconnect.

Remove drive unit (2) together with linkage.

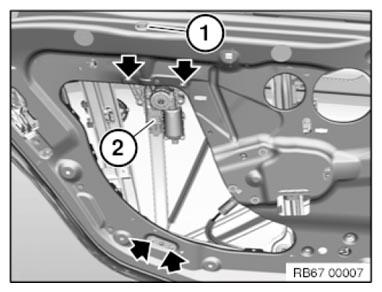

Fig 1: Locating Drive Unit Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
