67 32 600 Replacing fans for seat surface on front seat

Necessary preliminary tasks

• Partially remove seat cover for driver's or front passenger seat  . See 52 17 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (COMFORT) or 52 17 403 REPLACING SEAT COVER FOR PASSENGER SEAT (COMFORT) (FROM 09/09) .
• ECE version:

  If necessary, remove SENSOR MAT (SEAT OCCUPANCY MAT) .

• US version:

  If applicable, remove the Sensor mat (OC3-mat) or. SENSOR MAT (CIS MAT) .

Unfasten plug connection.

Installation note:

Make sure fans have correct cable routing (1).

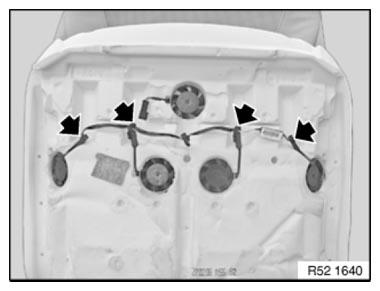

Fig 1: Identifying Fans Correct Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.

Raise separating net (1).

Pull faulty fans (2) out of seat cushion slightly and disconnect plug connections behind.

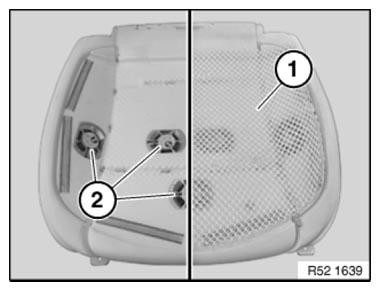

Fig 2: Identifying Separating Net And Faulty Fans

Courtesy of BMW OF NORTH AMERICA, INC.
