67 11 555 Removing and installing/replacing actuator drive for fuel filler flap

Necessary preliminary tasks

Slacken screws (1)

Feed out servodrive (2) in direction of arrow and unlock and disconnect associated plug connection.

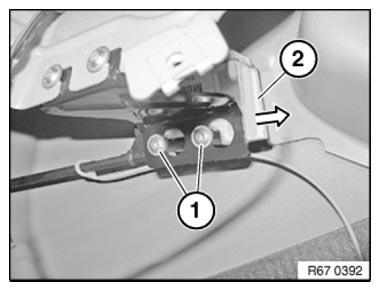

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn sleeve (1) with a suitable tool approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 2: Turning Sleeve Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 3: Sliding Sleeve Over Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Disengage emergency actuation pull strap (2) from retainer (5) and remove towards front.

If necessary, unclip locking pin (3) in direction of arrow from servodrive for tank filler flap (4).
