Ideal setting in the longitudinal direction (rear window glass, retractable)

Measure distance (A) from the B-pillar cover (1) to the rear door window glass (3).

Distance (A):

= 8 ± 0.8 mm
= 50 mm from roof frame strip(2)

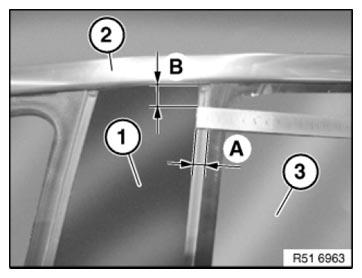

Fig 1: Identifying Distance Between B-Pillar Cover And Rear Door Window Glass
Courtesy of BMW OF NORTH AMERICA, INC.
