51 22 280 Removing and installing/replacing door stop on left or right rear door

Necessary preliminary tasks

Close door windows
Remove acoustic insulation .

NOTE: Secure rear door against falling closed.
After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

Pull out rubber cover (1).

Release screw (3).

Tightening torque 51 22 5AZ .

Release screw (2).

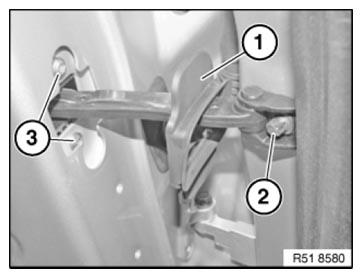

Fig 1: Identifying Rear Door Rubber Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 22 3AZ .

Slide out door stop.

Installation note:

Seal (1) must not be damaged.

Remove door stop (1) via aperture (2).

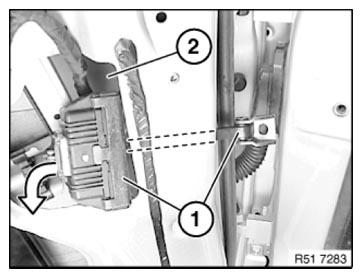

Fig 2: Removing Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

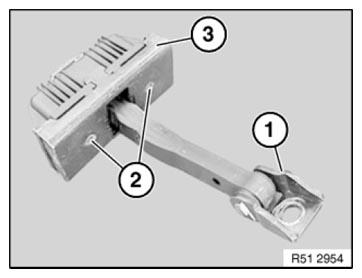

Fig 3: Identifying Door Retainer, Hinge And Thread
Courtesy of BMW OF NORTH AMERICA, INC.
