51 16... Removing and installing/replacing side trim panels on center console on left or right

Release screw (1).

Slide trim panel (2) in direction of arrow and remove.

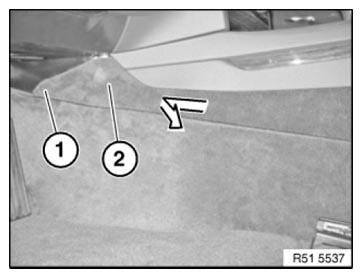

Fig 1: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retainers (1) must be correctly seated in panel guides (2).

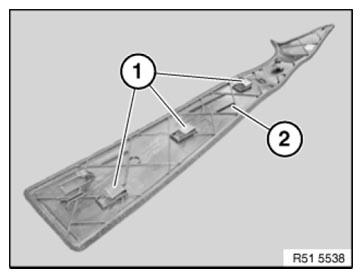

Fig 2: Identifying Panel Guides And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty retainers (2).

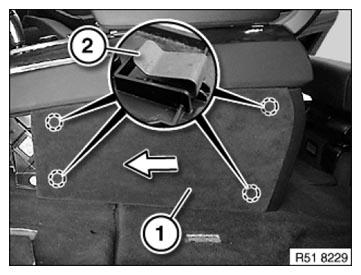

Fig 3: Identifying Side Carpet And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
