51 16 368 Replacing right glovebox with enclosure

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Modify glovebox light (1).

If necessary, modify cover (2)

Modify cover (3).

Fig 1: Identifying Glovebox Light And Modify Cover

Courtesy of BMW OF NORTH AMERICA, INC.

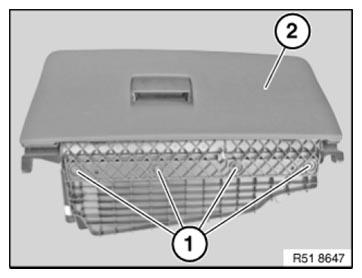

Release screws (1) on glovebox cover (2).

Remove glovebox cover (2).

Fig 2: Identifying Glovebox Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
