51 16 195 Removing and installing/replacing center armrest

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Pull the front mat insert (1) up and remove.

Then pull the rear mat insert (2) up in the front and remove.

Installation:

Cleanly adjust rubber nipples and lugs of mat inserts.

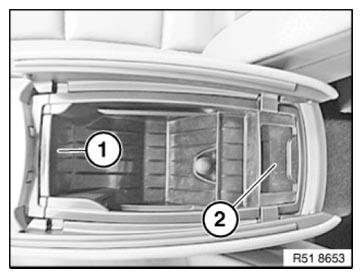

Fig 1: Identifying Front And Rear Mat Insert

Courtesy of BMW OF NORTH AMERICA, INC.

First pull left and right center console covers (1) back toward the inside, then unhook in the front and remove.

Fig 2: Pulling Left And Right To Center Console Covers

Courtesy of BMW OF NORTH AMERICA, INC.

For telephone outfitting version:

Release screw (1) on center console right cover (2).

Remove cover (2) as described above (Eject-

Box and cover (2) remain in the storage compartment).

Installation:

Adjust covers. On the left, also note USB / AUX-IN port.

Fig 3: Identifying Center Console Right Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right bolts (1) on center armrest (2).

Tightening torque 51 16 13AZ .

Remove center armrest (2).

Fig 4: Identifying Center Armrest, Left And Right Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

5116195 Removing and installing/replacing center armrest
