51 16 161 Replacing center console cover

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Remove foam strip (1).

Installation:

If necessary, replace foam strip (1).

Release screws (2) on left and right from center console cover (3).

Fig 1: Identifying Foam Strip, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from cup holder and remove cup holder.

Modify retainer clamps (2).

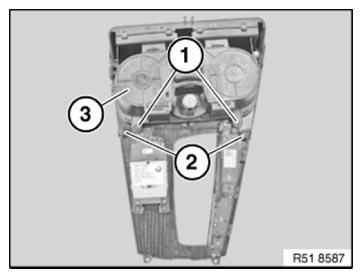

Fig 2: Identifying Cup Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

5116161 Replacing center console cover
