41 63 000 Removing and installing flap for fuel filler neck
NOTE:

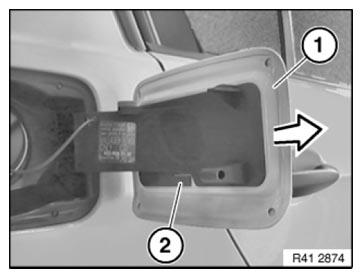

The illustration is a schematic representation and is to be applied to the relevant vehicle type.
Open fuel filler flap.
Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
