51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front

Necessary preliminary tasks

Unclip clutch housing Bowden cable (1) at marked points.

Installation note:

Clips must not be damaged.

To open up clutch housing cover, lever up cover (2) in direction of arrow.

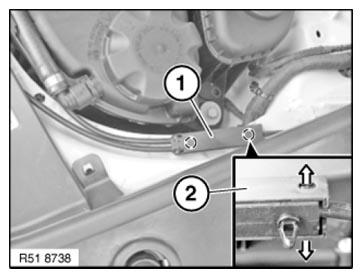

Fig 1: Releasing Clutch Housing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Feed rear Bowden cable (2) out of sliding carriage (1) and clutch housing (3).

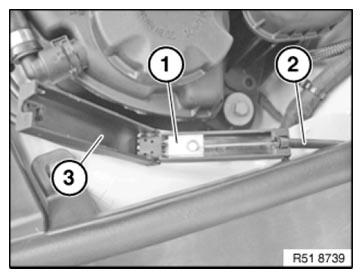

Fig 2: Identifying Rear Bowden Cable, Sliding Block And Clutch Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1)and catch carrier (3).

Repeat procedure on second bonnet lock.

Unthread cable for bonnet locks and remove.

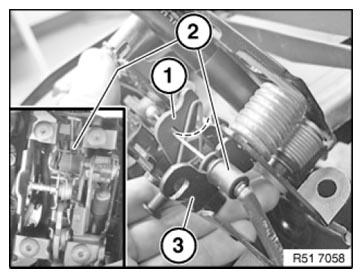

Fig 3: Identifying Bowden Cable, Release Lever And Lock Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
