51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

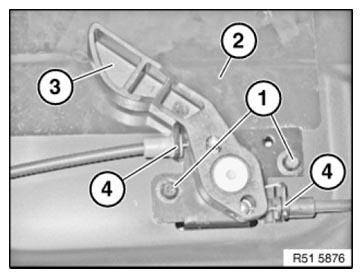

Fig 1: Identifying Bowden Cables, Engine Compartment Lid, Release Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

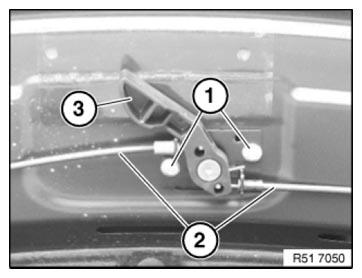

Fig 2: Identifying Bowden Cables, Release Element And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
