51 23 110 Removing and installing/replacing left engine compartment lid lock

Necessary preliminary work

Remove service flaps , left and right.

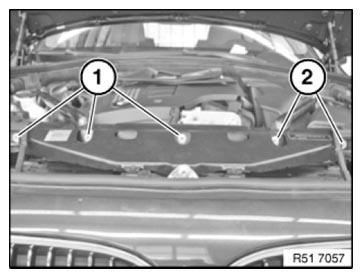

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

Fig 1: Identifying Left Engine Compartment Lid Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

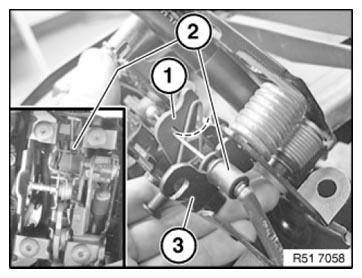

Pull back retaining spring from release lever (1).
Feed Bowden cable (2) out of release lever (1) and lock carrier (3).

Fig 2: Identifying Bowden Cable, Release Lever And Lock Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

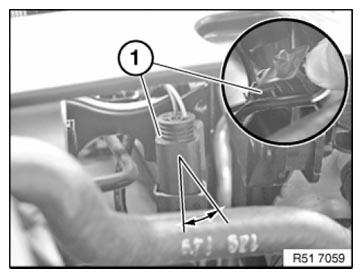

Detach plug connection (1) by twisting from catch carrier.

Unlock plug connection (1) and disconnect.

Fig 3: Identifying Engine Compartment Lid Catch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

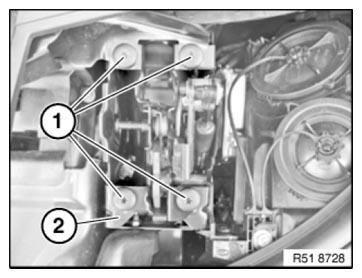

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

Fig 4: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

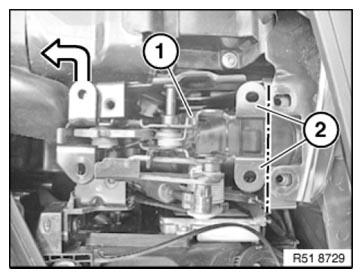

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line).

Fig 5: Pushing Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

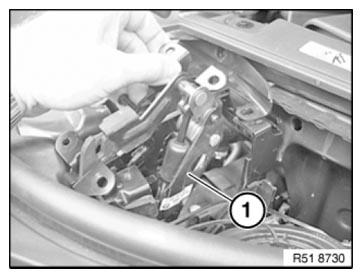

Lift out engine compartment lid lock (1) at rear.

If necessary, feed out cable from microswitch for anti-theft alarm system.

Remove engine compartment lid lock (1).

Fig 6: Identifying Rear Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

5123110 Removing and installing/replacing left engine compartment lid lock
