Overview for side window bonding

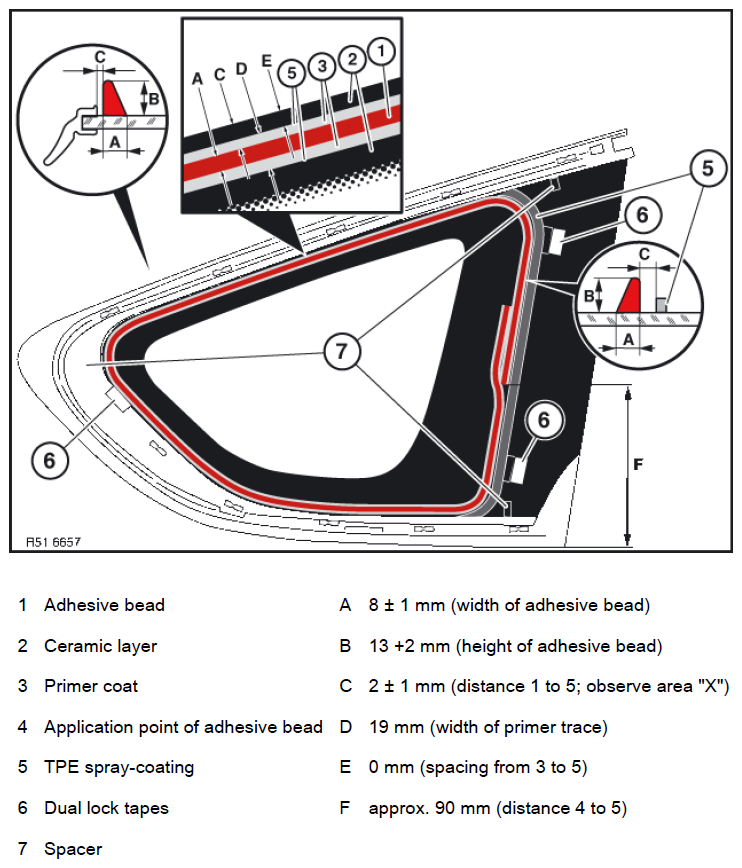

Fig 1: Overview Of Side Window Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

Moisten suction face of special tool 51 3 220 and secure to door window glass. Set down door window glass on a suitable surface.

If reusing the previous side window, remove adhesive residue down to 0.5 mm.

Almost vertical part (B) of adhesive bead (1) must face TPE spray-coating (5).

Spread bead joint (4) with special tool 00 9 322.

Installation note:

To secure the basic position, first place side window (3) with clip (1) of trim strip (2) in the body flange.

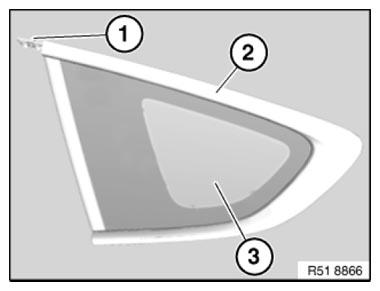

Fig 2: Identifying Side Window, Clip And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Center side window (1) at TPE spray-coating (2).

Insert side window (1) completely.

Close rear door.

Adapt side window (1) to rear door if necessary.

Snap side window into dual-lock tapes and secure with yellow plastic adhesive tape*.

* (Sourcing reference: BMW Parts Department)

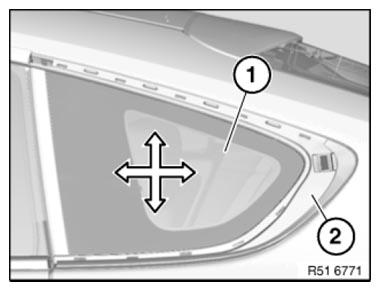

Fig 3: Identifying Side Window And TPE Spray-Coating
