Fitting 3 Dual Lock tapes

Remove rest of dual-lock tapes (1) and clean bonding surface.

Stick new dual-lock tapes (1) to body.

Dual-lock tapes on side window must match these dual-lock tapes.

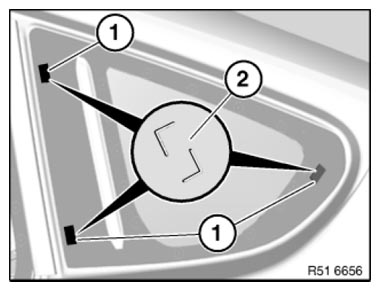

Fig 1: Identifying Dual-Lock Tapes On Body Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check clip (1) for damage; replace if necessary.

Assemble side window (3) with trim strip (2) before applying the adhesive bead. Secure trim strip (2) with Dual Lock tape (4).

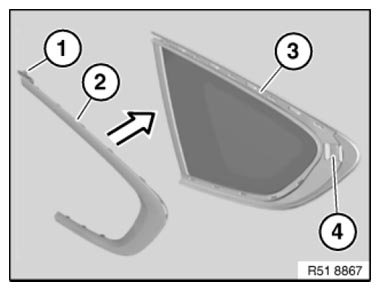

Fig 2: Securing Trim Strip Using Dual Lock Tape

Courtesy of BMW OF NORTH AMERICA, INC.
