51 75... Removing and installing/replacing lower left or right cover (wheel arch)

Necessary preliminary tasks

Release all screws (1).

Tightening torque 51 75 1AZ .

Remove cover.

Replacement:

As from April 09, the quick fasteners are omitted and replaced by conventional screw connections.

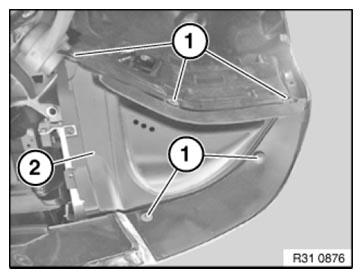

Fig 1: Identifying Tank Cover, Tension Strut, Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
