Adjusting cavity dimension, fixed door window glass

Slacken screw (1) and twist adjusting screw (2) to adjust window cavity gap.

Tighten screw (1).

Tightening torque 51 35 6AZ .

Check window cavity gap, repeat operations if necessary.

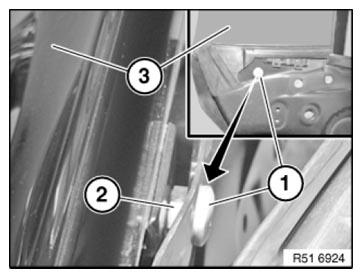

Fig 1: Identifying Door Window Glass And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
