51 32 170 Removing and installing/replacing door window glass, front left or right

Special tools required:

51 3 240

WARNING: Risk of injury!
Carry out work on the power window unit only when the power window motor is de-energized.

Necessary preliminary tasks

Remove acoustic insulation in front door.
Remove outer window cavity cover strip.

Loosen hook screws (1) with special tool 51 3 240 on ring gear.

Tightening torque 51 33 1AZ .

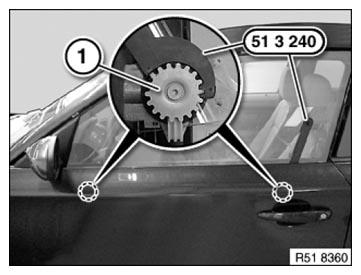

Fig 1: Removing Outer Window Cavity Cover Strip Using Special Tool (51 3 240)

G08422076

Courtesy of BMW OF NORTH AMERICA, INC.

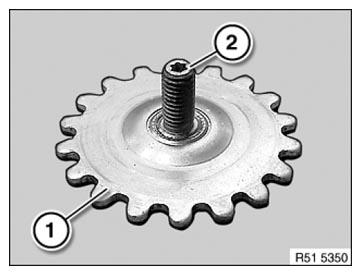

NOTE: Slacken hook screw on ring gear (1) until it can be easily twisted out at the inner star (2).

Fig 2: Identifying Ring Gear And Inner Star Of Hook Screw

G08422077

Courtesy of BMW OF NORTH AMERICA, INC.

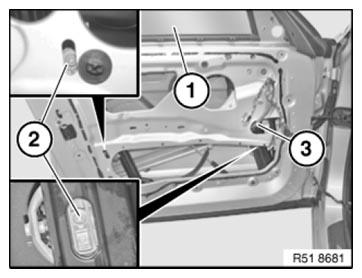

Open door window glass (1) until hook screws (2) are accessible.

IMPORTANT: Risk of injury!
Disconnect plug connection (3) at power window motor (risk of trapping).

Release hook screws (2) (turn in clockwise direction).

Fig 3: Identifying Door Window Glass, Hook Screws And Plug Connection

G08422078

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Door window glass (3) remove for purposes of clarity.

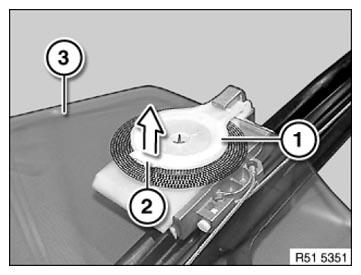

Raise holder (1) at lug (2) and remove door window glass (3) in upward direction.

Fig 4: Removing Door Window Glass

G08422079

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

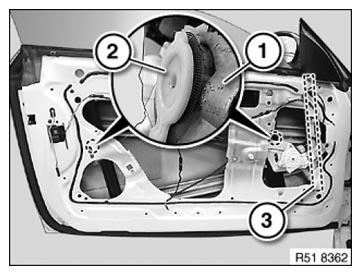

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

Fig 5: Identifying Door Window Glass, Holder And Window Guide

G08422080

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust DOOR WINDOW GLASS CAVITY DIMENSIONS.

Adjust DOOR WINDOW GLASS.

Carry out function check on power window unit and anti-trapping protection.

If necessary, normalize power window unit. See 67 62... NOTES ON INITIALIZING POWER WINDOWS .
