Ideal adjustment, longitudinal direction

Open door window approximately 5 cm.

Insert the special tool 51 0 000 into the mirror triangle from above.

Raise the door window.

51 0 000 Door window glass must rest without play on special tool.

The retraction depth of the door window glass is 17 mm ± 1 mm in the area of the mirror triangle.

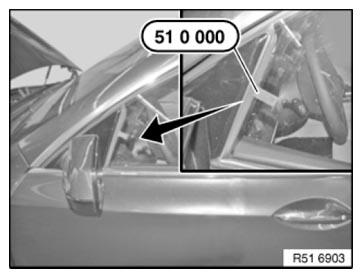

Fig 1: Opening Door Window Glass Using Special Tool (51 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.
