Adjusting pretension

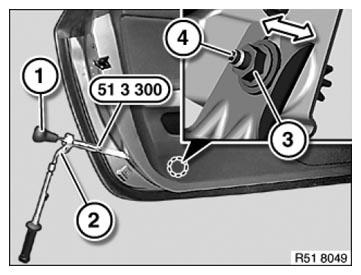

Slacken the nut (3) size 13 with the reversible ratchet (2) of the special tool 51 3 300 (consisting of 51 3 301 , 51 3 303 and 51 3 304 ).
Turn knob (1) on special tool 51 3 300 to turn bolt (4) and thereby alter the pre-tension.
Tighten nut (3).
Tightening torque 51 33 1AZ .
Check adjustment, repeat procedure if necessary.
NOTE:
After completing adjustment work, it is essential to INITIALIZE
the power window unit.
Checking run-in of door window glass:
Door window glass must strike the inside of the gasket.
IF NECESSARY, ADJUST GAP DIMENSION OF B-PILLAR COVER.
Checking run-in of door window glass:
Door window glass must strike the inside of the gasket.
IF NECESSARY, ADJUST GAP DIMENSION OF B-PILLAR COVER.
