51 21... Removing weather strip with special tool 00 9 324 at front or rear

Special tools required:

Open side window completely.

Front door:

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

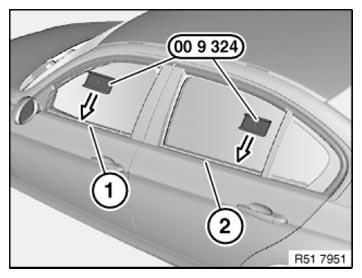

Fig 1: Opening Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

Special tool 00 9 324 must be correctly guided under weather strip (1).

2 Short leg, bottom
3 Long leg, top (TOP)

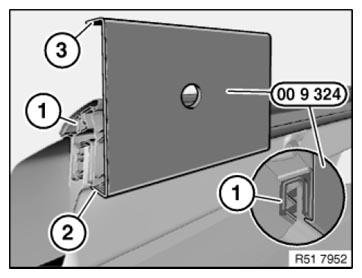

Fig 2: Aligning Bottom Short Leg And Top Long Leg With Weather Strip Using Special Tool (00 9 324)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

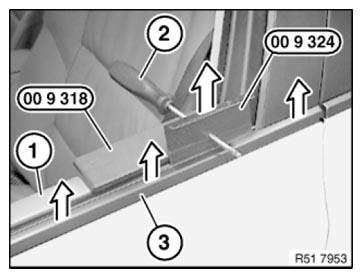

Fig 3: Removing Weather Strip Using Guide Special Tools (00 9 324) And (00 9 318)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

Position special tool 00 9 318 on door trim panel (1).

Slide suitable tool (2) through hole of special tool 00 9 324 and in this way lever weather strip (3) in an upward direction by max. 5 mm.

Guide special tools 00 9 324 and 00 9 318 forward and backward step by step until weather strip (3) is fully removed.

5121... Removing weather strip with special tool 00 9 324 at front or rear
