51 21 330 Removing and installing/renewing window cavity cover strip on inner front door

Necessary preliminary tasks

• Remove front door trim panel. See 51 41 000 Removing and installing (replacing) front left or right door trim panel .

Pull off window cavity cover strip (1) towards top.

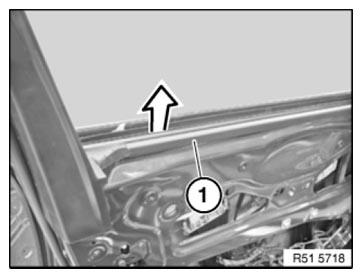

Fig 1: Pulling Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

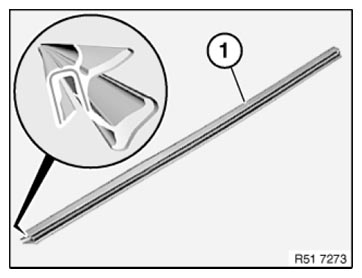

Fig 2: Identifying Coating On Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

5121330 Removing and installing/renewing window cavity cover strip on inner front door
