51 21 301 Removing and installing/replacing weather strip on outside of front door

Special tools required:

IMPORTANT: The "INSTRUCTIONS ON INSTALLATION OF WINDOW GUIDES" serve as the basis for this repair instructions and must be observed without fail.

Necessary preliminary tasks

Carefully lever weather strip (1) out of door using special tool 00 9 322.

Installation note:

Moisten weather strip (1) before installation with APPROVED LUBRICANT .

Weather strip (1) must be flush at front to door.

Fig 1: Removing Weather Strip From Door Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Window guide (1) must be flush under weather strip (2)

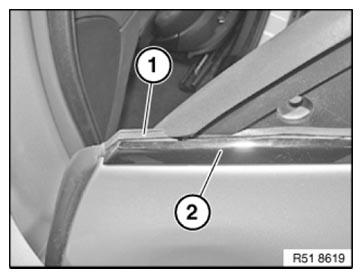

Fig 2: Identifying Flush Under Weather Strip And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
