51 21 003 Replacing door detent (lock striker), front left or right

Release screws (1) and remove door detent (2).

Installation note:

If necessary, carry out basic adjustment by way of notches (3) on door detent (2) and B-pillar.

Tightening torque 51 21 2AZ .

After installation

ADJUST DOOR DETENT. .

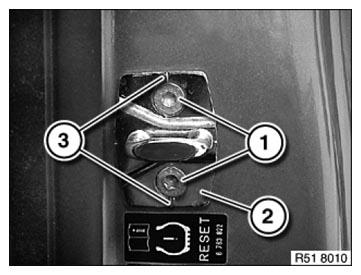

Fig 1: Identifying Door Detent, Notch And Screws
G08421883Courtesy of BMW OF NORTH AMERICA, INC.
