51 71 100 Replacing all cooling air routings for radiator

Necessary preliminary work

Not in the case of 12-cylinder models:

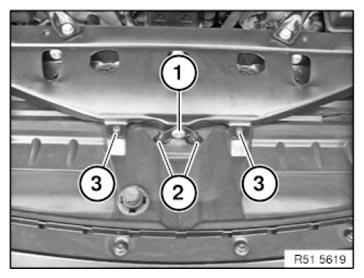

Undo screw connection (1) on V-braces (2).

Tightening torque 51 61 6AZ .

Fig 1: Identifying V-Braces And Screw Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only in the case of 12-cylinder models:

Undo screw connection (2) on V-braces.

Tightening torque 51 61 6AZ .

Fig 2: Identifying V-Braces And Screw Connection With Screws (In 12-Cylinder Models)

Courtesy of BMW OF NORTH AMERICA, INC.

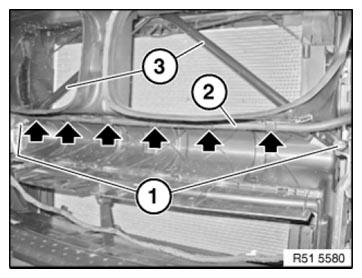

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-support (3) upwards.

Unclip hose pipe (2) for headlight cleaning system at marked points and set down safely.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

Fig 3: Removing Hose Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 4: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on cross-member (2).

Tightening torque 51 11 2AZ .

Fig 5: Identifying Cross-Member And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vertical connection (2).

Remove vertical connection (2).

Tightening torque 51 11 2AZ .

Fig 6: Identifying Vertical Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Feed out cooling air routing (3).

Fig 7: Identifying Plug Connection, Cooling Air Routing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure air intake duct (1) is correctly fitted on cooling air routing (2)

Fig 8: Identifying Air Intake Duct And Cooling Air Routing

Courtesy of BMW OF NORTH AMERICA, INC.

5171100 Replacing all cooling air routings for radiator
