3.2 Treatment of adhesive area in body aperture

• Touch up PAINTWORK DAMAGE on body aperture with BMW multibase filler.
• Clean with cleaning agent R2
• Observe an air drying time of at least 5 minutes (at least 15 minutes when applied to residual adhesive bead)
• Apply paint activator (blue stick) to paint and then wipe dry with a paper towel.
• Observe an air drying time of at least 1 minute (at least 10 minutes when applied to residual adhesive bead)

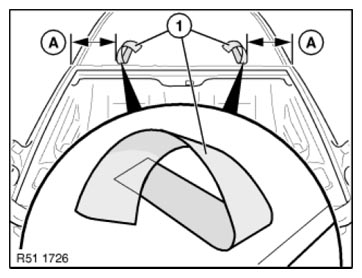

Fig 1: Identifying Yellow Plastic Adhesive Tapes Applying Area On Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Bond two yellow plastic adhesive tapes (1) approx. 400 mm in length to the roof.

(A) = 250 mm

Only the yellow plastic adhesive tape may be used to fix the window glass.

The glass will slip down if other adhesive tapes are used.

Window glass slippage will result in leaks and wind noises.

After completing the paint work, the paint must be fully hardened before the plastic adhesive tapes are applied.
