3.10 Adjusting the window glass

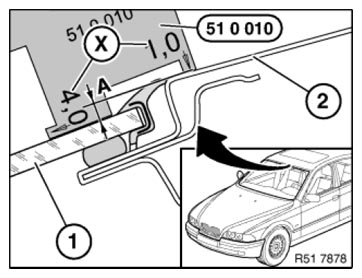

Fig 1: Adjusting Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid wind noise, the front and rear windows (1) must be lower than the roof outer skin (2).

Check height of the windscreen or rear window using special tool 51 0 010 .

Dimension (A) of window glass offset.

X = measurement stages 1... 4 mm
